Psfrag Example

Forfatter:

LianTze Lim

Sidst opdateret:

5 år siden

Licens:

Creative Commons CC BY 4.0

Resumé:

Use the psfrag package to replace strings in EPS images, so that they are typeset with the same body font as your LaTeX document. Note that your project needs to be compiled with the LaTeX dvipdf engine. To configure this, after creating a new project, click on the Overleaf menu icon above the file list panel, and make sure the "Compiler" setting is set to "LaTeX".

(The sample image is taken from the psfrag package.)

Tags:

PSTricks

\begin{now}

Opdag hvorfor 18 millioner mennesker verden rundt stoler på Overleaf med deres arbejde.

Opret gratis konto Udforsk alle abonnementer

\documentclass[12pt,a4paper]{article}
\usepackage[margin=2cm,a4paper]{geometry}
\pagestyle{empty}
\title{psfrag Example}

\usepackage[T1]{fontenc}
\usepackage{ebgaramond}
\usepackage{newtxmath}

\usepackage{graphicx}
\usepackage{psfrag}

\begin{document}

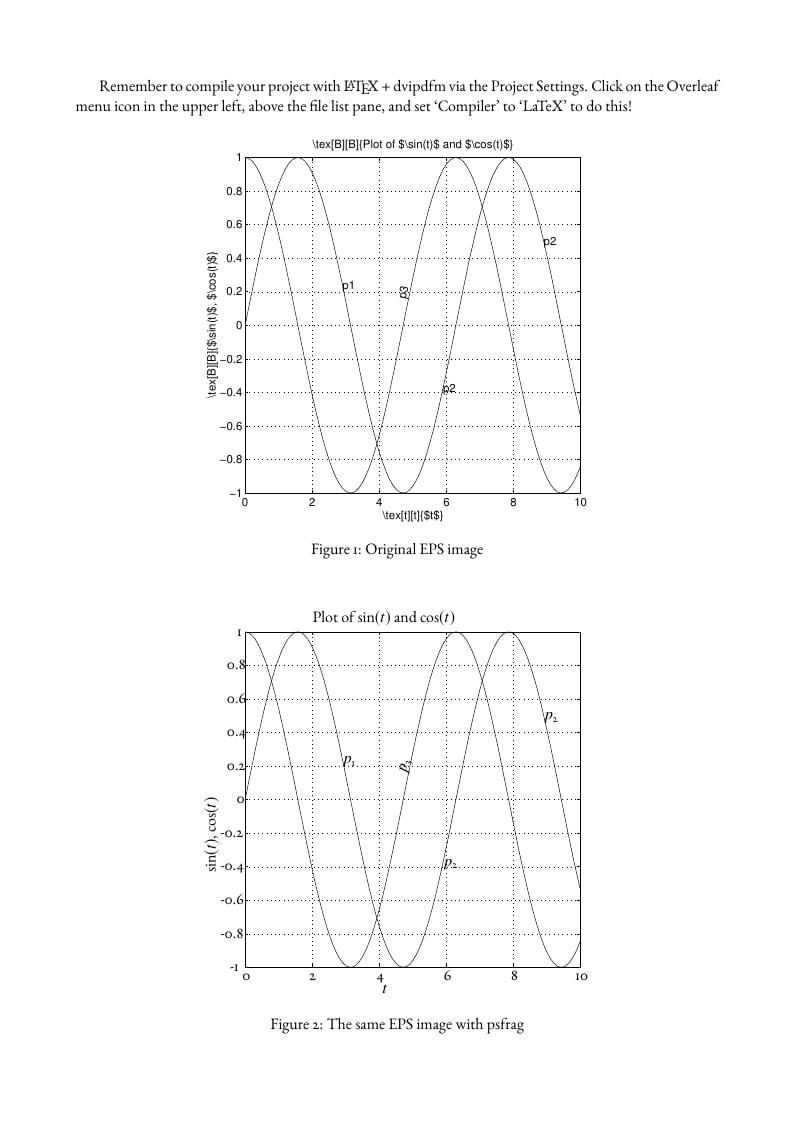

Remember to compile your project with \LaTeX\ + dvipdfm via the Project Settings. Click on the Overleaf menu icon in the upper left, above the file list pane, and set `Compiler' to `LaTeX' to do this!

\begin{figure}[h!]
\centering
\includegraphics[width=.6\textwidth]{example}
\caption{Original EPS image}

\vskip3em

\psfrag{p1}{$p_1$}
\psfrag{p2}{$p_2$}
\psfrag{p3}{$p_3$}
\psfrag{\\tex[B][B]\{Plot of \$\\sin(t)\$ and \$\\cos(t)\$\}}{Plot of $\sin(t)$ and $\cos(t)$}
\psfrag{\\tex[t][t]\{\$t\$\}}{$t$}
\psfrag{\\tex[B][B]\{\$\\sin(t)\$, \$\\cos(t)\$\}}{$\sin(t)$, $\cos(t)$}
\psfrag{-1}{-1}
\psfrag{-0.2}{-0.2}
\psfrag{-0.4}{-0.4}
\psfrag{-0.6}{-0.6}
\psfrag{-0.8}{-0.8}
\psfrag{0}{0}
\psfrag{0.2}{0.2}
\psfrag{0.4}{0.4}
\psfrag{0.6}{0.6}
\psfrag{0.8}{0.8}
\psfrag{1}{1}
\psfrag{2}{2}
\psfrag{4}{4}
\psfrag{6}{6}
\psfrag{8}{8}
\psfrag{10}{10}
\includegraphics[width=.6\textwidth]{example}
\caption{The same EPS image with psfrag}
\end{figure}

\end{document}
